August 24, 2026

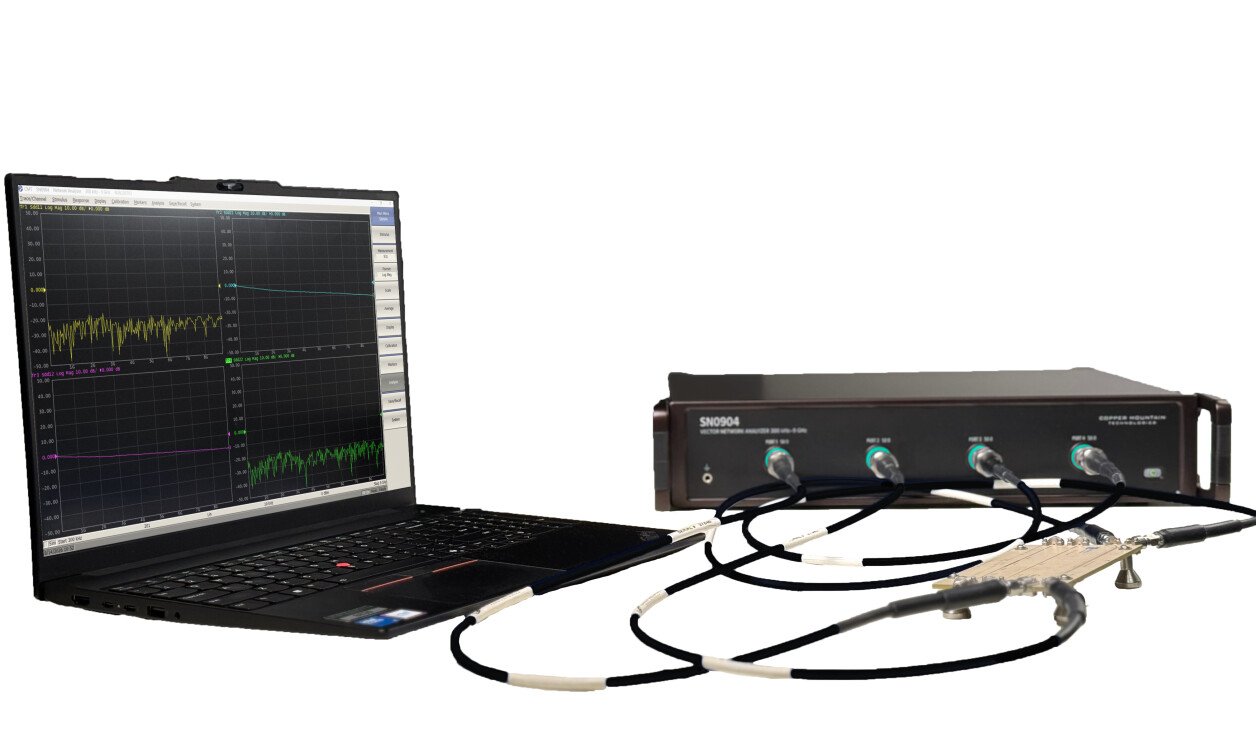

This week’s product, the Copper Mountain Technologies’ (CMT’s) SN0904 4-Port 9 GHz Vector Network Analyzer (VNA), supports full 4-port 2-path measurements up to 16 S-Parameters (S11-S44) with CMT’s advanced measurement software. The instrument simplifies multi-port testing for radar, electronic warfare, military communications, avionics, and other defense RF systems.
The CMT SN0904 enables complete 4-port, 2-Path S-parameter characterization from 300 kHz to 9 GHz without the need to reconnect the device under test or perform multiple two-port measurements. Engineers can characterize couplers, power splitters and combiners, duplexers, RF switches, differential interconnects, and other multi-port devices without performing multiple two-port measurements.
Designed for Defense
In situations where there is a need for strong security like defense applications, USB VNAs are a better fit than traditional instruments. Taking traditional network analyzers in/out of secure environments is complicated, requiring removable hard drives, data purging procedures, and oversight over those data purging procedures.
The SN0904 operates with CMT’s VNA software on an external computer, separating the measurement hardware from the user interface and data-management environment. No measurement data—including potentially sensitive or classified test data—is retained on the VNA hardware after power-down, supporting its use in security-conscious defense laboratories and production environments.
Capabilities
- Frequency range: 300 kHz to 9 GHz
- Measurement speed: 24 µs per point
- Time-domain analysis and gating
- Fixture simulation and de-embedding
- Dynamic range:
- 300 kHz to 5 MHz: 110 dB (125 dB typ.)
- 5 MHz to 6 GHz: 135 dB (140 dB typ.)
- 6 GHz to 9 GHz: 122 dB (130 dB typ.)
- Output power range:
- 300 kHz to 6 GHz: -45 dBm to +10 dBm
- 6 GHz to 9 GHz: -45 dBm to +2 dBm
- Number of measurement points: 2 to 500,001
- Advanced measurement software included without recurring license fees
- Subscription-free VNA user interface software available for direct download from the CMT website
- Full applications engineering support provided at no additional cost
Software features (available at no additional cost
- Linear/logarithmic sweeps with multiple trace formats
- Power sweeps
- Time domain and gating conversion
- Frequency offset mode (mixer, frequency converter measurement)
- Fixture simulation (embedding/de-embedding)
- 16 independent channels with as many as 16 traces each
- Markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc.
- Test Automation programming in LabView, Python, MATLAB, C++, .NET, and more.
CMT’s Manufacturing Test plugin is available to integrate the VNA into production test systems.
The CMT SN0904 is also compatible with S4 VNA software for Windows PC, laptop, tablet, or x86 board computer connecting to the measurement hardware via USB interface. S4 software can be installed license free on multiple computers, making it easy and secure for shared use of the vector network analyzer.
For more information, visit the SN0904 page here, or visit the company’s website, or follow the links below.
Resources:
- To download the SN0904 datasheet, click here.
- To download demo software, click here.
- To learn more about Copper Mountain Technologies’ VNAs for defense, click here.
- To learn more about Copper Mountain Technologies’ technical resources, click here.
- For sales information, click here.
